SRA Model Routel

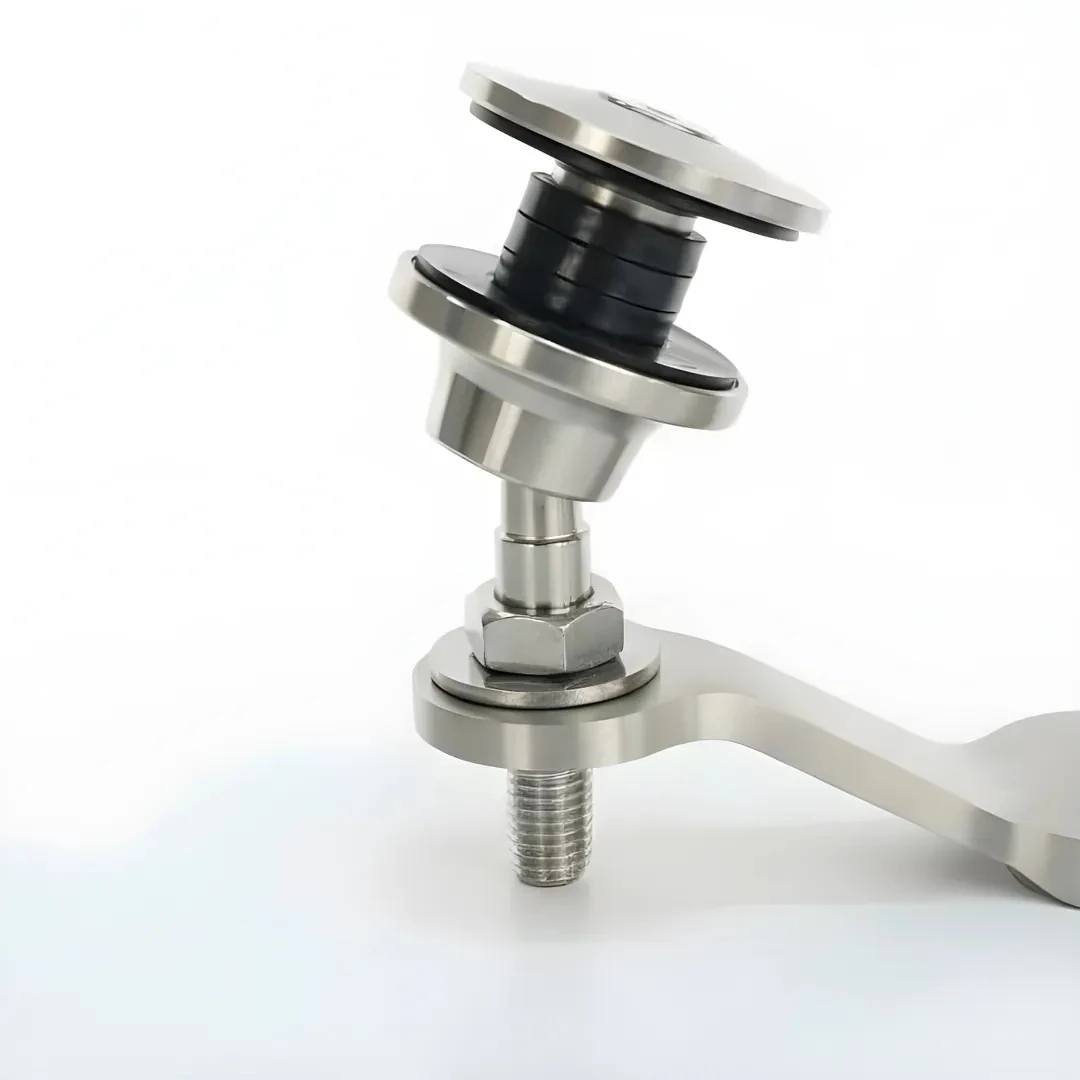

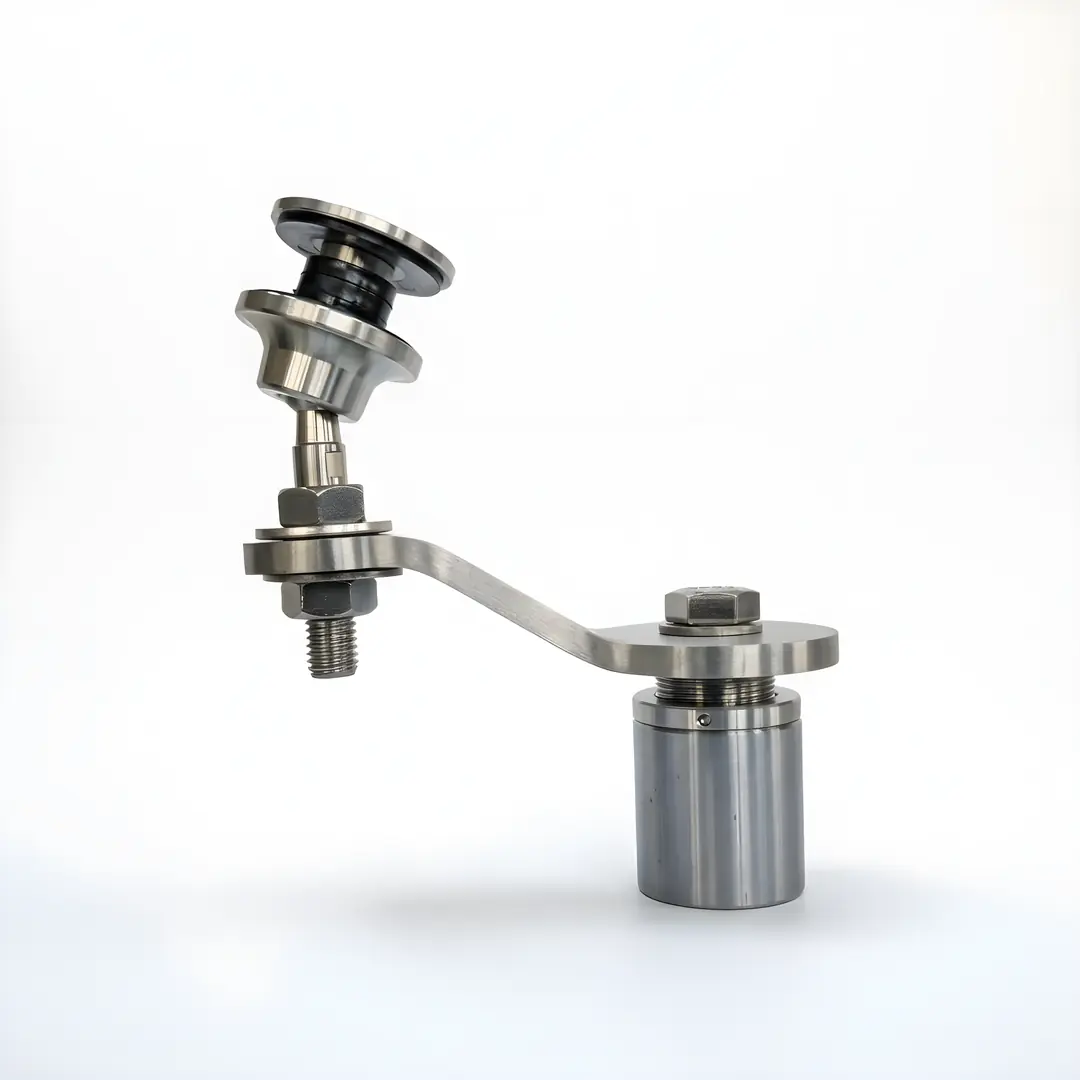

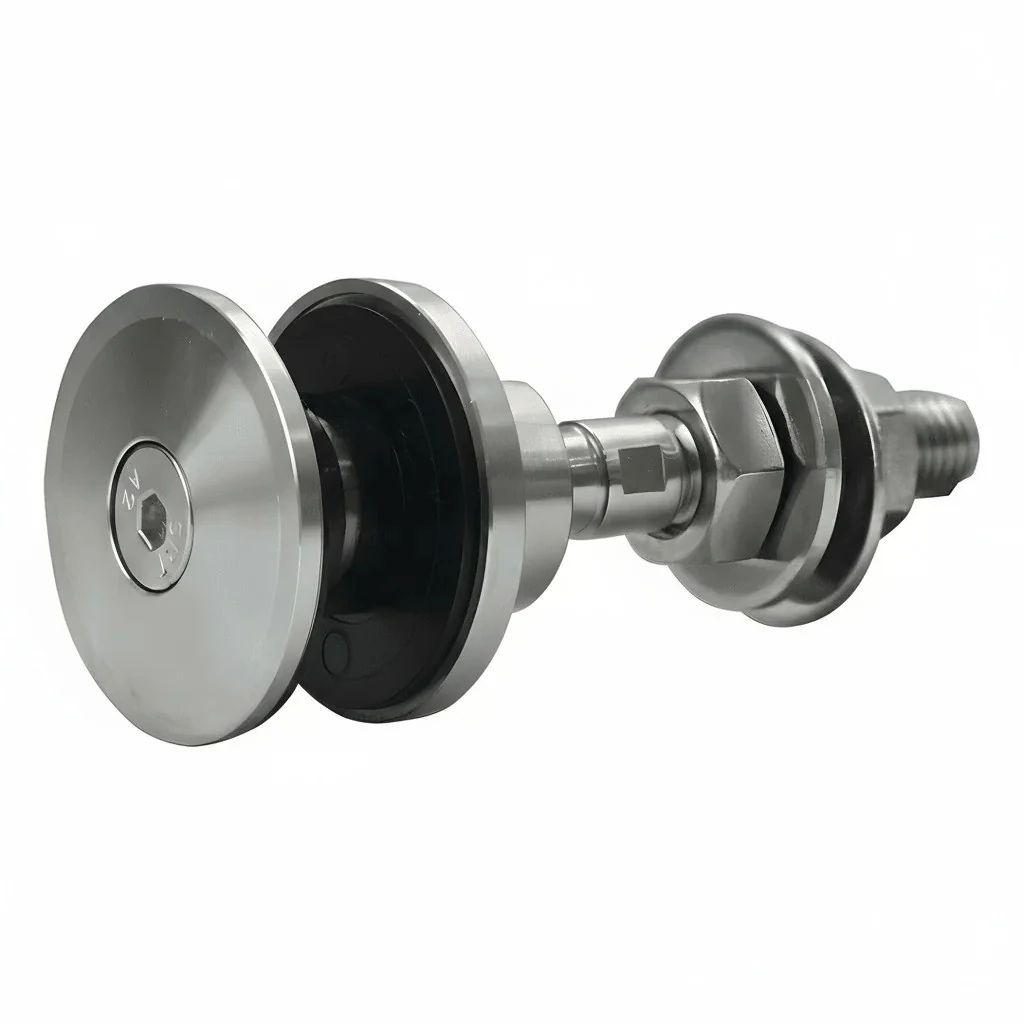

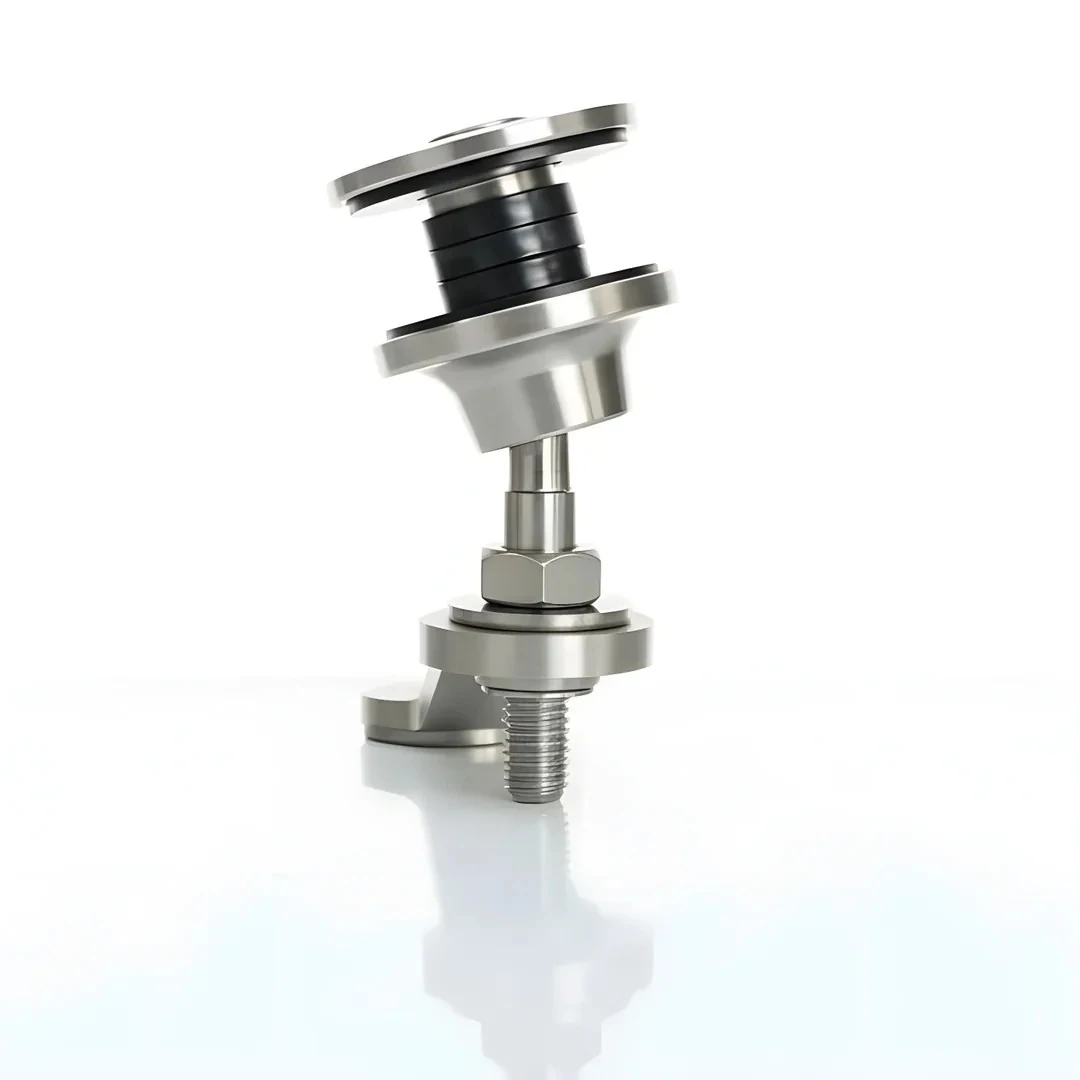

The SRA Routel is a precision-engineered stainless steel connector used in spider glass facade systems.
It is installed through drilled glass panels and features a movable head that allows angular adjustment up to ±18°, ensuring perfect alignment and reliable performance.

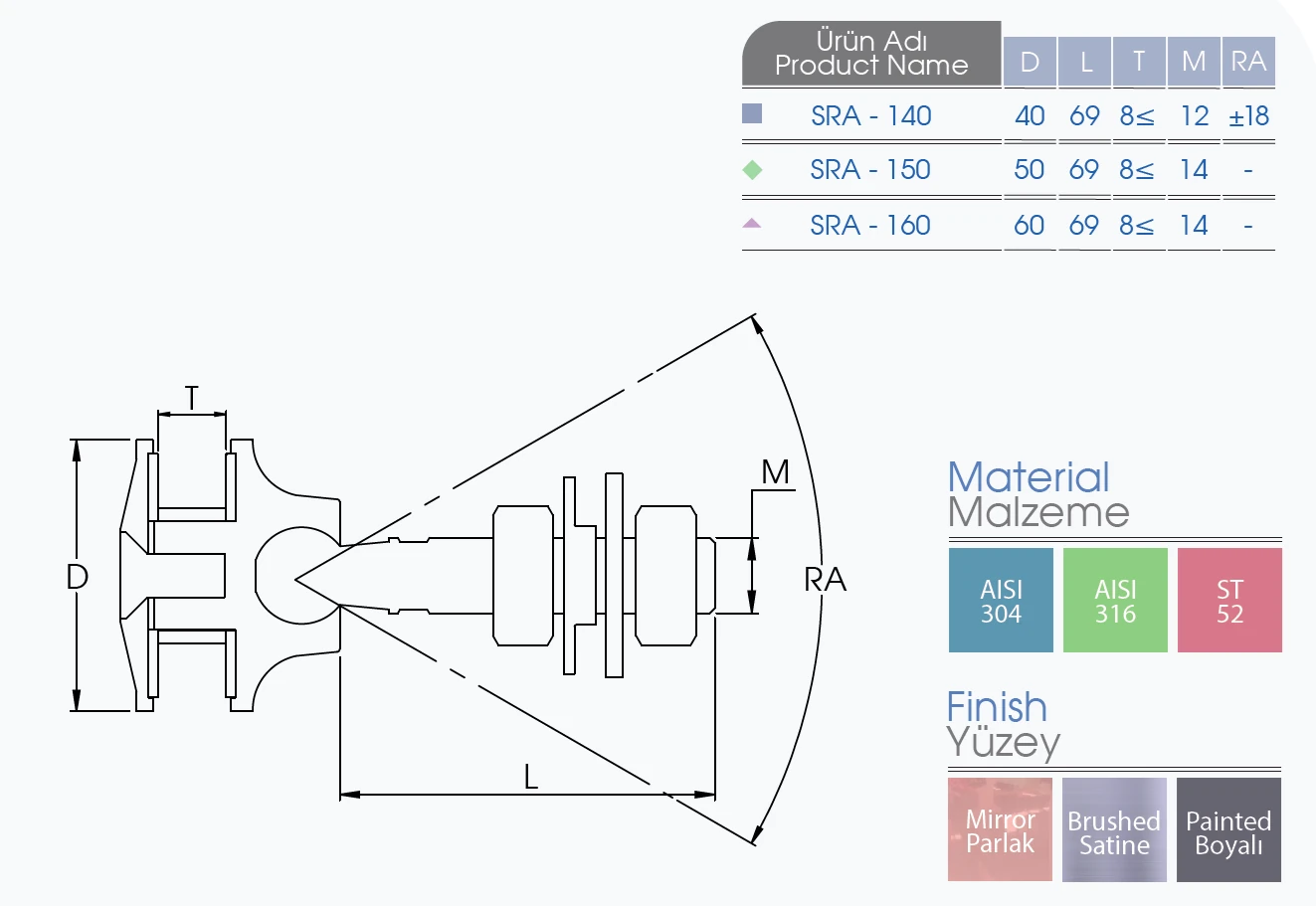

Technical Specifications

Material & Quality

Manufactured from AISI 304 / 316 stainless steel, machined to ±0.1 mm tolerance.
316 grade ensures superior corrosion resistance for coastal and outdoor applications, while 304 suits indoor or mild exterior use.

Applications

• Structural glass facades
• Atriums and skylights
• Hotels, malls, and office buildings
• Glass bridges and balustrades
• Architectural spider systems

Advantages

• ±18° movable head for perfect angle adjustment
• High mechanical strength and load capacity
• Frameless modern appearance
• Corrosion-resistant stainless steel construction
• Easy to install and maintain

Surface Options

• Mirror Polished: Decorative and premium appearance
• Brushed Satin: Modern matte finish
• Painted: Industrial aesthetic

Maintenance

Clean with mild neutral cleaner. Avoid acidic or chloride solutions.
Inspect and retighten connection bolts periodically for safety.

The SRA Series Routel combines engineering precision with architectural elegance.
Its adjustable movable head ensures flexibility during installation while maintaining strength and durability.
Ideal for all types of structural glass facade applications.
